NASA’s ‘Dragon Lady’ is uncovering how wildfires create storms

High-Altitude Research Reveals Secrets of Fire-Driven Storms

Earthguardiansonline.com – A decades-old Cold War aircraft has found new purpose in the sky, soaring above raging wildfires to decode one of nature’s most unpredictable weather phenomena. NASA’s ER-2, a modified version of the legendary U-2 spy plane, is currently conducting groundbreaking research into pyrocumulonimbus storms—massive thunderstorms born from the intense heat of wildfires. These fire-generated weather systems represent a complex intersection of atmospheric science and climate dynamics that researchers are only beginning to understand.

The Science of Fire Storms

When wildfires burn with sufficient intensity, they create their own weather patterns. The tremendous heat rising from burning vegetation acts as a powerful updraft, pushing smoke and hot air vertically through the atmosphere. This process generates enormous thunderclouds capable of producing lightning, violent winds, and occasionally fire tornadoes.

It’s kind of like a chimney where the smoke from the fire is being pushed upward into the thunderstorm, accelerated through that vertical column, and then released, said David A. Peterson, a meteorologist at the Naval Research Laboratory.

Peterson serves as the principal investigator for NASA’s INSPYRE mission—short for INjected Smoke and PYRocumulonimbus Experiment. This ambitious project aims to unravel the erratic behavior of these fire-generated storms, which have historically been difficult to forecast due to their formation under unpredictable atmospheric conditions.

The generated smoke column is basically a warm bubble that triggers the thunderstorm, so it’s like any other really tall, severe thunderstorm cloud, but now you’ve filled it with smoke. The fire at that point is essentially feeding itself, Peterson explained.

Advanced Technology at 65,000 Feet

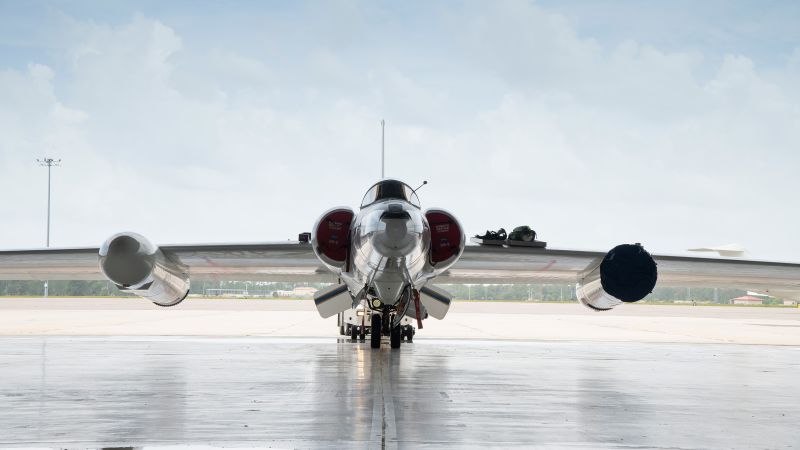

The ER-2 operates at altitudes reaching approximately 65,000 feet, positioning it above most weather systems while maintaining proximity to the fire plumes below. This high-altitude capability transforms the aircraft into what Peterson describes as a steerable satellite, capable of orbiting back and forth over active wildfire zones.

Equipped with sophisticated scientific instruments rather than military equipment, the ER-2 carries an array of sensors designed to measure fire energetics. Radar systems track plume size and altitude, while additional instruments monitor air motion within the storm clouds. The aircraft also records lightning activity and electric field measurements inside the pyrocumulonimbus formations.

While the ER-2 surveys from above, NASA deploys a Gulfstream 5 jet directly into the storm clouds. This dual-approach methodology allows researchers to cross-reference data between the airborne satellite observations and direct cloud measurements.

The idea is that the data they collect can inform each other, Peterson noted. The G-5 is directly in the clouds, and so it can inform the radars that are seeing the cloud and then relate that to what the airborne satellite is telling you.

Mission Progress and Scientific Goals

The ER-2 mission commenced operations in July, with early flights covering burning wildfires across northern Oregon and western Canada. These initial sorties have already provided valuable data about the conditions that trigger pyrocumulonimbus formation.

We’re looking with the INSPYRE mission to understand first and foremost what conditions produce these storms, Peterson stated.

Recent scientific discoveries have revealed that fire-generated weather systems can penetrate beyond normal atmospheric boundaries, reaching the stratosphere. This phenomenon creates what researchers describe as a volcano-like effect, with smoke being propelled to extraordinary heights where jet stream winds can transport it rapidly across continents.

There’s a volcano-like effect, with smoke being pushed really high into the atmosphere, and we’ve learned in recent years that once smoke reaches these high altitudes, it can obviously be transported by jet stream winds really fast, Peterson said.

A Legacy Aircraft Reimagined

The ER-2’s heritage stretches back to the mid-1950s, predating the era of spy satellites. During this period, the United States required aerial reconnaissance capabilities to monitor Soviet developments behind the Iron Curtain. The U-2, affectionately nicknamed the Dragon Lady, was engineered specifically for extreme altitude operations over Soviet territory.

At its inception, American military planners believed Soviet missile technology could not reach the U-2’s cruising altitude, granting the aircraft unprecedented freedom to photograph Soviet installations. This confidence was tested on May 1, 1960, when Soviet forces shot down a U-2 piloted by Francis Gary Powers, demonstrating that American intelligence had underestimated Soviet capabilities.

Despite this setback, the U-2 platform proved remarkably resilient and versatile. Over seven decades of service, the aircraft contributed critical intelligence during the Cold War, the Cuban Missile Crisis, the Vietnam War, and contemporary conflicts in Iraq and Afghanistan.

Looking Toward Better Predictions

The ultimate objective of the INSPYRE mission extends beyond immediate scientific understanding. Researchers aim to develop improved forecasting tools that can predict pyrocumulonimbus behavior with greater accuracy. This capability holds significant implications for communities living in wildfire-prone regions, where understanding storm formation could enhance evacuation planning and resource allocation.

We’re both using tools that are just being developed now by some of our science team members to help guide the mission, but we’re also using the mission to help feed back to improve those prediction tools, Peterson explained. There will inevitably be a component of the mission where we produce better tools to predict this type of fire behavior.

As climate patterns continue to shift and wildfire seasons grow more intense and prolonged, the insights gained from this high-altitude research may prove increasingly valuable. The ER-2’s continued service demonstrates how Cold War technology can find renewed relevance in addressing modern environmental challenges, bridging the gap between historical innovation and contemporary scientific necessity.
